ZL 687 Mechanical Seals

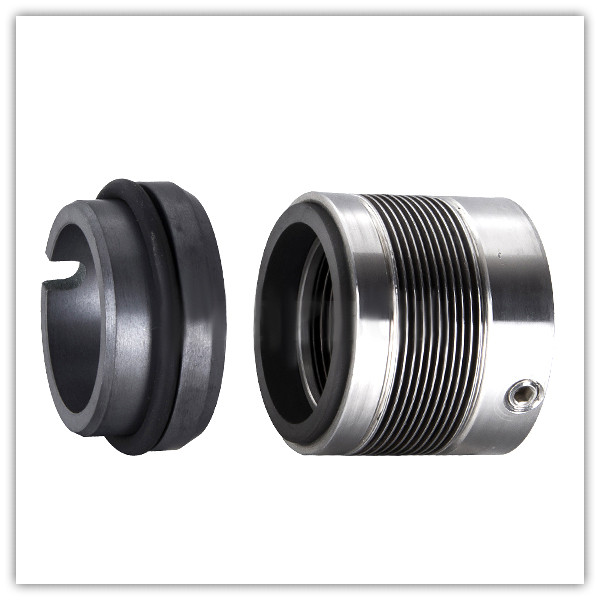

  • ZL 687 Mechanical SealsZL 687 Mechanical Seals

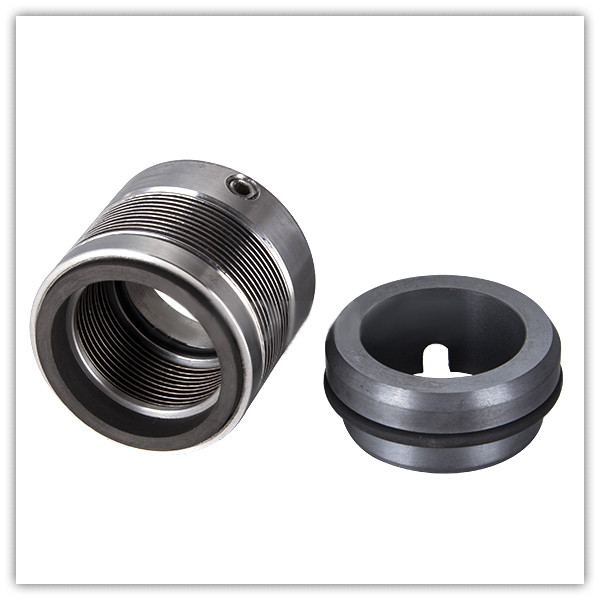

  • ZL 687 Mechanical SealsZL 687 Mechanical Seals

ZL 687 Mechanical Seals

You can rest assured to buy ZL 687 Mechanical Seals from us. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

Send Inquiry

Product Description


ZL687 Metal Bellow Mechanical Seal for John Crane 680

Description:
ZL 687 Mechanical Seals
For big compressors and industrial pumps
Replacing the mechanical seal of John Crane 680

Operational Conditions:
Temperature: -75℃ to +200℃
Pressure: ≤2.0MPa
Speed: ≤23m/s

Materials:
Stationary Ring：TC, Silicon Carbide
Rotary Ring：Carbon ,Silicon Carbide,TC
Secondary Seal：NBR,EPDM,Viton
Bellows：Steel
Spring and Metal Parts：Steel

Applications:
Oil, light hydrocarbon,
aromatic Hydrocarbon,
organic solvents,
week acids,
ammonia



d  (inch) D3 L1
0.750 1.312 1.250
0.875 1.437 1.250
0.937 1.500 1.250
1.000 1.562 1.250
1.125 1.687 1.250
1.250 1.812 1.312
1.375 1.937 1.437
1.500 2.063 1.437
1.625 2.187 1.437
1.750 2.312 1.437
1.875 2.437 1.500
2.000 2.562 1.500
2.125 2.687 1.500
2.250 2.812 1.562
2.375 2.937 1.562
2.500 3.187 1.562
2.625 3.312 1.625
2.750 3.437 1.625
2.875 3.625 1.687
3.000 3.750 1.687
3.125 3.875 1.750
3.250 4.000 1.750
3.375 4.125 1.750
3.500 4.250 1.875
3.625 4.375 1.875
3.750 4.500 1.875
3.880 4.625 1.875
4.000 4.750 1.875

d (mm) D3 L1
18 32 27.7
20 33.3 27.7
22 36 27.7
24 38.1 30.2
25 39 30.2
28 42 32.7
30 44 32.7
32 46 32.7
33 47 32.7
35 49.2 32.7
38 52.4 34.2
40 55.6 34.2
43 58.7 34.2
45 58.7 34.2
48 61.9 34.2
50 65.1 34.7
53 68.3 34.7
55 71 34.7
60 74.6 39.7
65 84.1 39.7
70 87.3 45.2
75 95.3 45.2
80 98.4 44.7
85 104.8 44.7
90 108 49.7
95 114.3 49.7
