Product Description

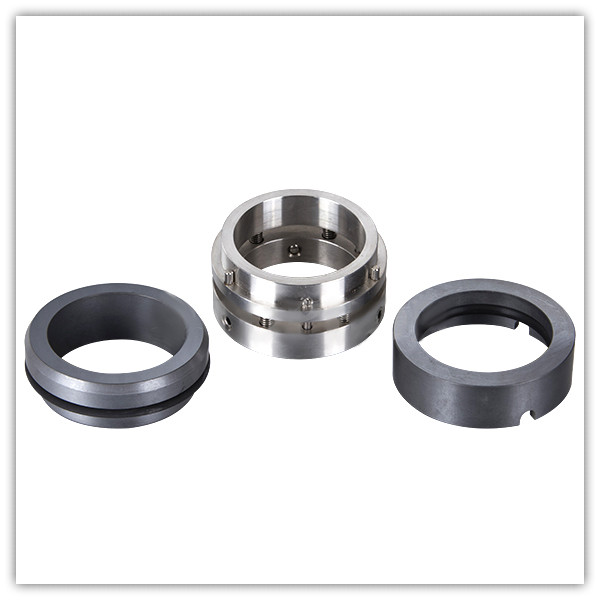

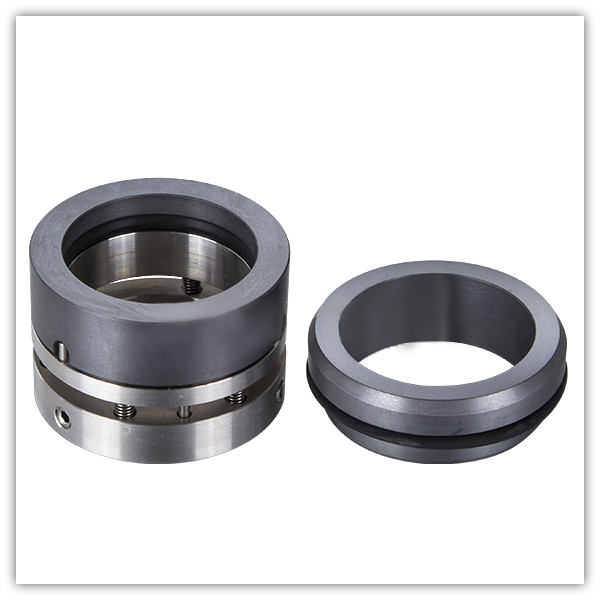

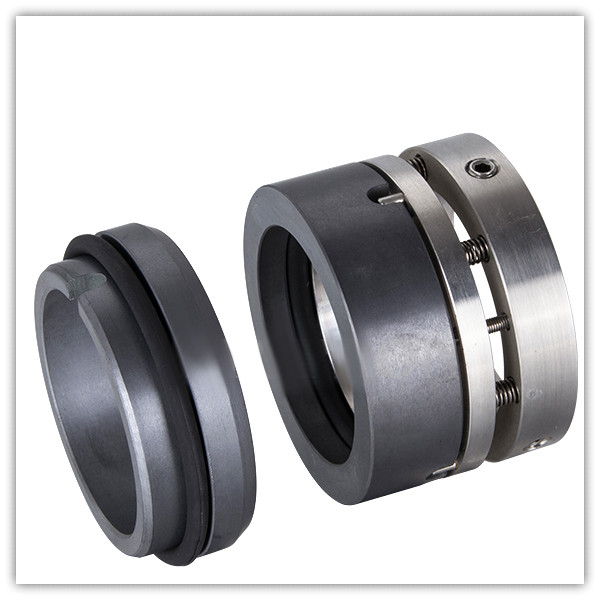

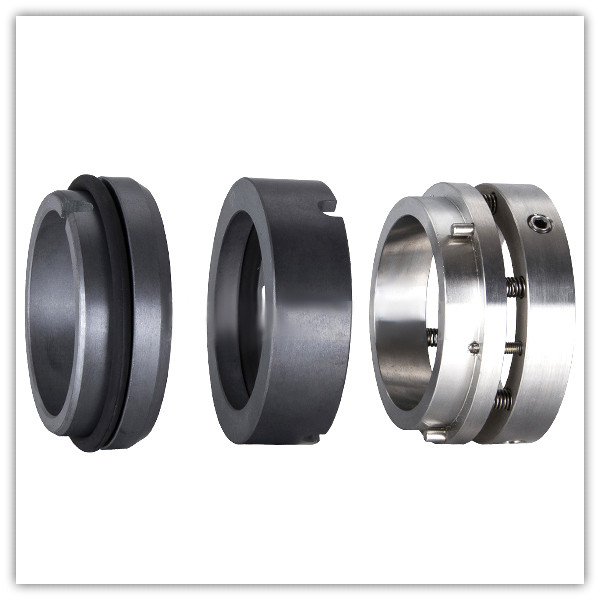

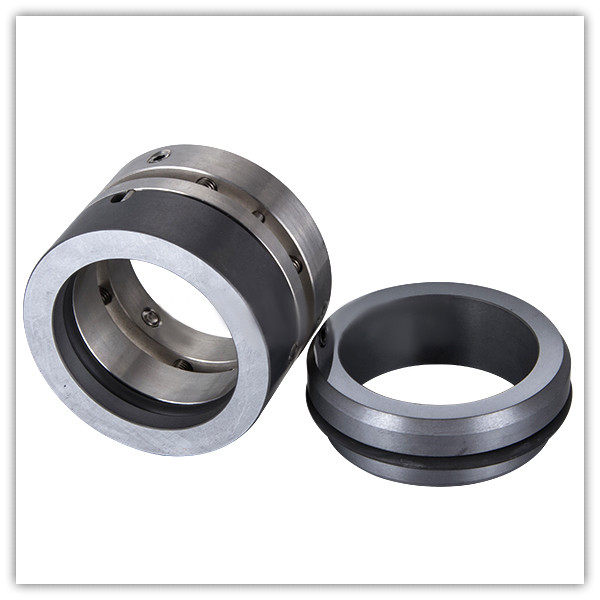

RO-C O-RING mechanical seal from China

Description

Due to the use of wear-resistant and corrosion-resistant materials and optimized structural design, RO-C mechanical seals can maintain a long service life in harsh working environments.
For industrial pumps
Replacing the mechanical seal of Burgmann and John Crane

Operational Conditions:

Temperature: -20℃ to +180℃
Pressure: ≤1.0MPa
Speed: ≤15m/s

Materials:

Stationary Ring：Carbon,
Rotary Ring： Steel，TC
Secondary Seal：NBR,EPDM,Viton，PTFE
Spring and Metal Parts：Steel

Applications:

Clean water,
Sewage water
Oil and other moderately corrosive fluids

d(mm)	D3	D2	D1	L7	L1	L2	L3
20	34	36	42	18	35	23	25
22	36	38	44	18	35	23	25
24	38	40	46	18	35	23	25
25	39	41	47	18	35	23	25
28	42	44	50	18	35	23	25
30	44	46	52	18	35	23	25
32	46	48	54	18	35	23	25
33	47	49	55	18	35	23	25
35	49	51	57	18	35	23	25
38	54	58	64	20	38	25	27
40	56	60	66	20	38	25	27
42	58	62	68	20	38	25	27
43	59	63	69	20	38	25	27
45	61	65	71	20	38	25	27
48	64	68	74	20	38	25	27
50	66	70	76	20	39	25	27
52	68	72	78	20	40	25	27
53	69	73	79	20	40	25	27
55	71	75	81	20	40	25	27
58	76	83	89	22	41	28	30
60	78	85	91	22	41	28	30
62	80	87	93	22	41	28	30
63	81	88	94	22	41	28	30
65	83	90	96	22	41	28	30
68	86	93	99	24	41	30	32
70	90	95	101	24	42	30	32
75	95	104	110	24	42	30	32
80	100	109	115	25	42	31	33
85	105	114	120	25	43	31	33
90	110	119	125	25	45	31	33
95	115	124	130	25	45	31	33
100	120	129	135	25	45	31	33
