Product Description

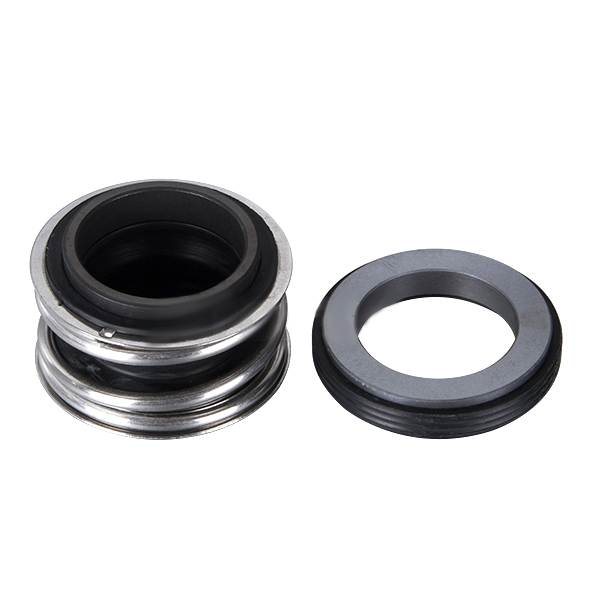

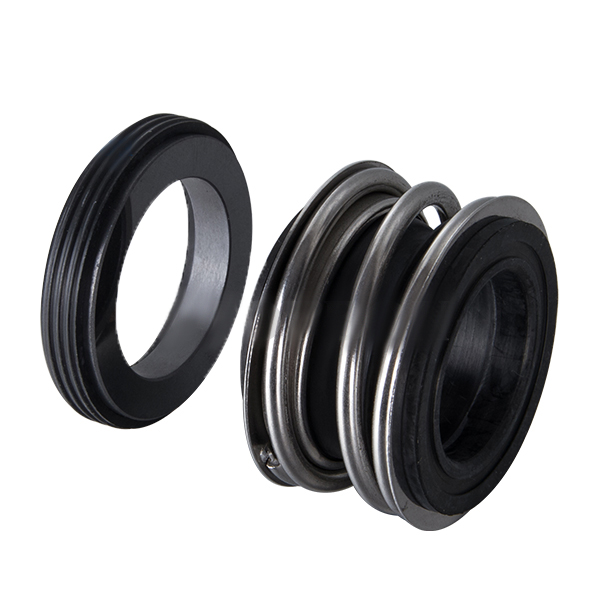

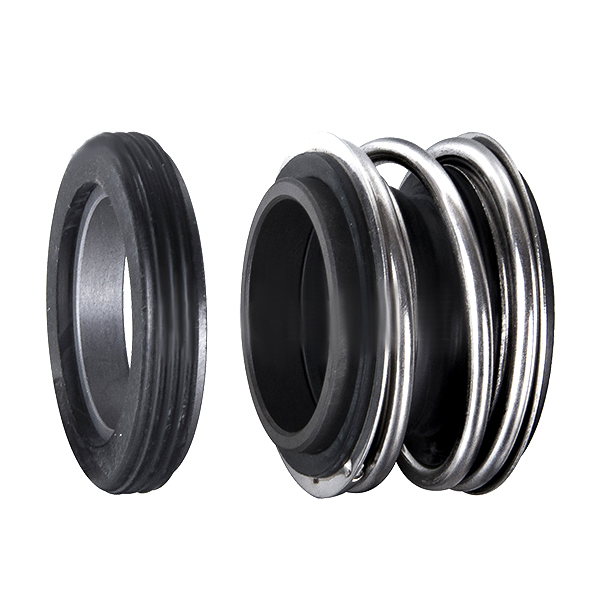

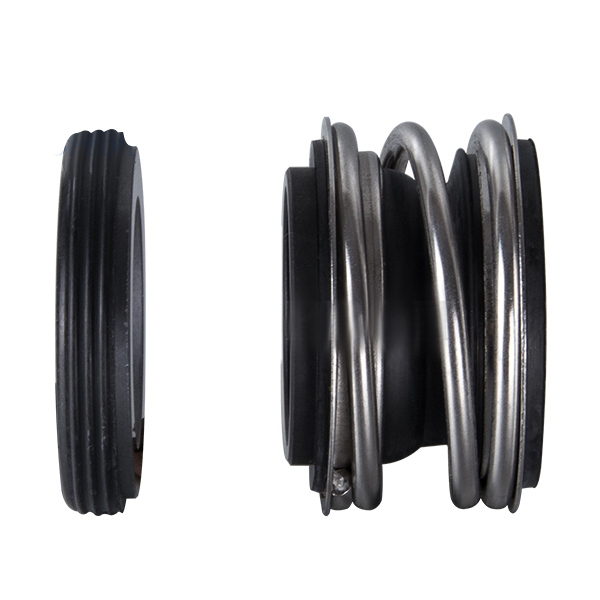

MG1/MG12/MG13/MGS20 Mechanical Seal

Description

Our products have a good quality&price advantage and cover most of the European and American markets. We look forward to becoming your long-term partner in China. You can rest assured to buy MG1/MG12/MG13 Mechanical Seals from our factory.

Replacement to:
Burgmann MG1 seal / MG12 seal /MG13 seal/MGS20 seal & G60 stationary
Aesseal B02/B012/B013 seal
Flowserve Pac-Seal 190 / Pac-Seal 192/ Pac-Seal 193
Hecker HN 410SU / Hecker HN 410KU / Hecker HN 410NU
Roten L3 / Roten L3k / Roten L3
Vulcan 19 / Vulcan 192/ Vulcan 193

Operational Conditions:

Temperature: -20℃ to +120℃
Pressure: ≤1.0MPa
Speed: ≤10m/s

Seat Type:

Standard:ZLG60
Alternative:ZLCT20,ZLG6,ZLG9

Materials:

Stationary Ring: Silicon Carbide Reaction Bonded,Ceramic(Alumina),Silicon Carbide Sintered Pressureless,Ni-binder Tungsten
Rotary Ring: Antimony Impreg. Carbon Graphite,Resin Impregnated Carbon Graphite(Furan),Silicon Carbide Reaction Bonded,Silicon Carbide Sintered
Pressureless,Ni-binder Tungsten Carbide
Spring and Metal Parts:Stainless Steel,Stainless Steel
Secondary Seal:Fluorocarbon Rubber(Viton),Nitrile(NBR),Ethylene

Applications:

Clean water,
sewage water
oil and other moderately corrosive fluids

d (mm)	D3	D2	D1	L1	L11	L12	L13	L2
10	22.5	17	21	14.5	25.9	33.4	25	66
12	25	19	23	15	25.9	33.4	25	6.6
14	28.5	21	25	17	28.4	33.4	25	6.6
15	285			17	284	33.4	25
16	28.5	23	27	17	28.4	33.4	25	6.6
18	32	27	33	19.5	30	37.5	25	7.5
19	37			21.5	30	37.5	25
20	37	29	35	21.5	30	37.5	25	7.5
22	37	31	37	21.5	30	37.5	25	7.5
24	42.5	33	39	22.5	32.5	42.5	25	7.5
25	42.5	34	40	23	32.5	42.5	25	7.5
28	49	37	43	26.5	35	42.5	33	7.5
30	49	39	45	26.5	35	425	33	7.5
32	53.5	42	48	275	35	47.5	33	7.5
33	53.5	42	48	27.5	35	47.5	33	7.5
35	57	44	50	28.5	35	47.5	33	7.5
38	59	49	56	30	36	46	33	9
40	62	51	58	30	36	46	33	9
42	65.5			30	36	51	41
43	65.5	54	61	30	36	51	41	9
45	68	56	63	30	36	51	41	9
48	70.5	59	66	30.5	36	51	41	9
50	74	62	70	30.5	38	50.5	41	9.5
53	78.5	65	73	33	36.5	59	41	11
55	81	67	75	35	36.5	59	41	11
58	85.5	70	78	37	41.5	59	41	11
60	88.5	72	80	38	41.5	59	41	11
65	93.5	77	85	40	41.5	69	49	11
68	96.5	81	90	40	41.2	68.7	49	11.3
70	99.5	83	92	40	48.7	68.7	49	11.3
75	107	88	97	40	48.7	68.7	52	113
80	112	95	105	40	48	78	56	12
85	120	100	110	41	46	76	56	14
90	127	105	115	45	51	76	59	14
95	132	110	120	46	51	76	59	14
100	137	115	125	47	51	76	62	14
